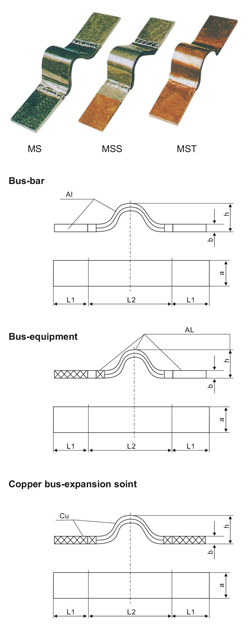

MS MSS MST Bar Expansion Joints

Application:

Aluminum, copper-aluminum bus bar expansion joints are mainly used in transformer substations for aluminum bus connection or copper-aluminum the copper-aluminum expansion joints adopts flash welding technology.


Type
Dimensions (mm)
a
b
h
L1
L2
MS-63×6.3
63
6.3
50
73
170
MS-80×6.3
80
6.3
50
90
170
MS-80×8
80
8
50
90
170
MS-100×8
100
8
50
115
170
MS-100×10
100
10
60
115
190
MS-125×8
125
8
50
140
170
MS-125×10
125
10
60
140
190
MS-125×12.5
125
12.5
60
140
190

Type
Dimensions (mm)
a
b
h
L1
L2
L3
MSS-63×6.3
63
6.3
50
73
170
73
MSS-80×6.3
80
6.3
50
90
170
90
MSS-80×8
80
8
50
90
170
90
MSS-100×8
100
8
50
115
170
115
MSS-100×10
100
10
60
115
190
115
MSS-125×8
125
8
50
140
170
140
MSS-125×10
125
10
60
140
190
140
MSS-125×125
125
12.5
60
140
190
140

Type
Dimensions (mm)
a
b
h
L1
L2
MST-63×6.3
63
6.3
50
73
170
MST-80×6.3
80
6.3
50
90
170
MST-80×8
80
8
50
90
170
MST-100×8
100
8
50
115
170
MST-100×10
100
10
60
115
190
MST-125×8
125
8
50
140
170
MST-125×10
125
10
60
140
190
MST-125×125
125
12.5
60
140
190
